Connect external tools to your agent through the Model Context Protocol (MCP). MCP servers expose functions that your agent can call during conversations — look up data, trigger actions, or interact with third-party systems without writing custom code. mcp-integrations

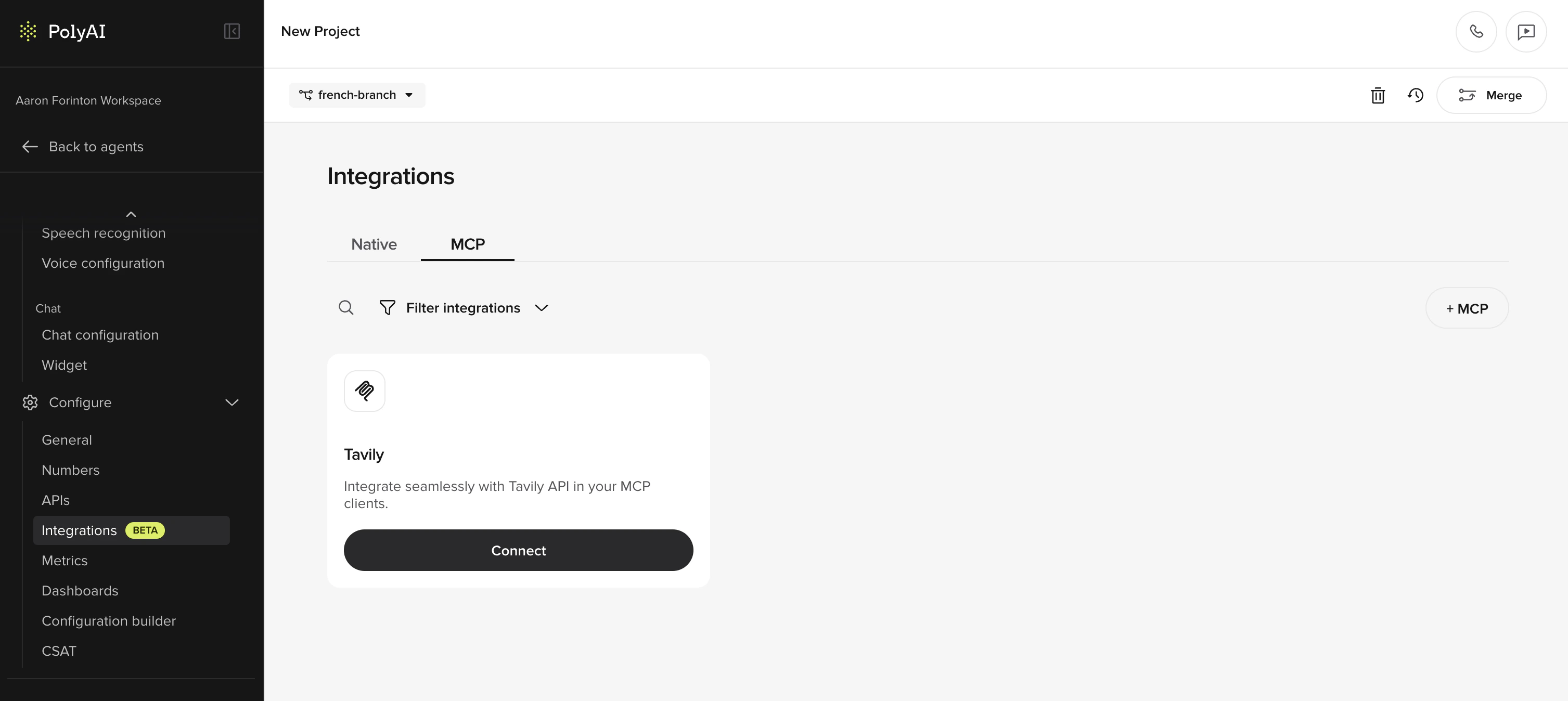

This feature is available from Configure > Integrations in Agent Studio under the MCP tab.

​
How it works

When you add an MCP server, Agent Studio connects to the server endpoint and automatically discovers the tools it exposes. Each tool has a name, description, and input schema defined by the server — you don’t need to configure these manually. During a conversation, your agent can call any enabled MCP tool. The flow is:
  1. Discovery — Agent Studio sends a discovery request to the MCP server URL and receives a list of available tools with their schemas.
  2. Configuration — You review the discovered tools and toggle on the ones your agent should have access to.
  3. Execution — When the agent decides to use a tool during a conversation, Agent Studio sends the tool call to the MCP server with the appropriate authentication and waits for a response (up to the configured timeout).
  4. Response — The MCP server executes the tool and returns the result. The agent uses the response to continue the conversation.
This means the MCP server controls what tools are available, and you control which of those tools the agent can actually use. Toggling tools off keeps them out of the agent’s context window, which helps keep prompts focused and efficient.

​
When to use MCP

Use MCP integrations when you want to connect your agent to an external tool that exposes an MCP server. Instead of writing custom functions and API configurations, you point Agent Studio at the MCP server URL and the platform discovers available tools automatically. Common use cases include:
  • Connecting to internal business systems that expose MCP endpoints
  • Adding third-party tool capabilities to your agent
  • Reusing tools across multiple agents without duplicating code

​
Prerequisites

  • The MCP server must be accessible over HTTPS
  • If the server requires authentication, you need the credentials and a secret stored in the Secrets Vault with access granted to your project

​
Add an MCP integration

1

Open the integrations page

Go to Configure > Integrations and select the MCP tab.
2

Add a new MCP server

Click Add MCP integration. In the modal, configure:
FieldDescription
MCP server URLThe HTTPS endpoint of the MCP server (e.g., https://mcp.example.com)
TimeoutHow long to wait for the server to respond, in seconds (1–30, default 15)
Authentication typeOptional. Choose Header, Query parameter, or OAuth depending on how the server authenticates requests
3

Configure authentication (if required)

Select an authentication type and fill in the required fields:
Add secrets in the Secrets page before configuring MCP authentication. Each secret must have access granted to your project. See Secrets for setup instructions.
4

Connect

Click Connect. Agent Studio discovers the functions available on the MCP server and displays them in the configuration panel.
5

Enable functions

Toggle individual functions on or off in the configuration panel. Only enabled functions are available to your agent during conversations.

​
Use MCP tools in prompts

Once an MCP server is connected, the discovered tools are available to the LLM inside step prompts. There are two approaches.

​
Basic usage

Name the tool and give a brief description of what it does. The LLM reads the tool’s input schema directly from the MCP server, so you don’t need to specify parameters.
### Available tools

1. join_session
- Initiates a screen sharing session using a six-digit code provided by the user.
This is the simplest approach — minimal prompt maintenance, and the LLM figures out the inputs from the schema.

​
Advanced usage

For complex tools where the LLM may struggle with correct inputs, you can specify the expected parameters explicitly in the prompt:
CALL: highlight_element_and_wait({
  cbid: "uXX-123",
  session_id: "...",
  user_message: "Click the Billing tab"
})
You can also wrap MCP tool calls with platform functions for additional logic like metric logging or state updates. For example, call a function after an MCP tool succeeds to log the result or trigger a step transition.
Explicit input specification creates a maintenance burden. If the MCP server changes its tool schema, your prompts need updating too. Use this only when the basic approach produces unreliable results.

​
Whitelisting tools via URL

You can restrict which tools are exposed by the MCP server using the tools query parameter in the server URL:
https://mcp.example.com?tools=join_session,get_html
This limits tool discovery to only the listed tools, which is useful when the server exposes more tools than your agent needs.

​
Manage MCP integrations

After connecting, you can:
  • Edit settings — Click an MCP integration card to open the configuration panel and update the server URL, timeout, or authentication
  • Refresh functions — Click Refresh in the configuration panel to re-discover available functions from the server
  • Toggle functions — Enable or disable individual functions without disconnecting the server
  • Disconnect — Remove an MCP integration entirely. Your agent will no longer have access to its functions

​
Troubleshooting

Verify that the MCP server URL is correct and accessible over HTTPS. Check that any required authentication credentials are configured and that the associated secret has access to your project.
The MCP server may not expose any tools, or the discovery request may have timed out. Try increasing the timeout value and clicking Refresh.
Confirm that the functions are toggled on in the configuration panel. Only enabled functions are accessible during conversations.
Projects that previously configured MCP through experimental config will continue to work — existing servers keep running in the background. The old config is only replaced when you add a new MCP server through the Integrations UI. Once migrated, manage all MCP servers from the UI.
Last modified on April 14, 2026
