This page includes Python code. The DTMF configuration UI does not require code, but the transition function examples below require Python familiarity.
Use DTMF when callers need to enter numeric input via their phone keypad — phone numbers, account numbers, confirmation codes, or consent responses (e.g., “Press 1 to opt out of recording”). DTMF is more reliable than speech for structured numeric input. Dual-Tone Multi-Frequency (DTMF) converts keypad presses into audio tones that telecom systems detect and process.
DTMF configuration is only available on Advanced flow steps. Low-code steps do not support DTMF or custom ASR settings. Additionally, DTMF output is not currently supported with the realtime model — if your agent uses the realtime model, DTMF collection will not work.

​

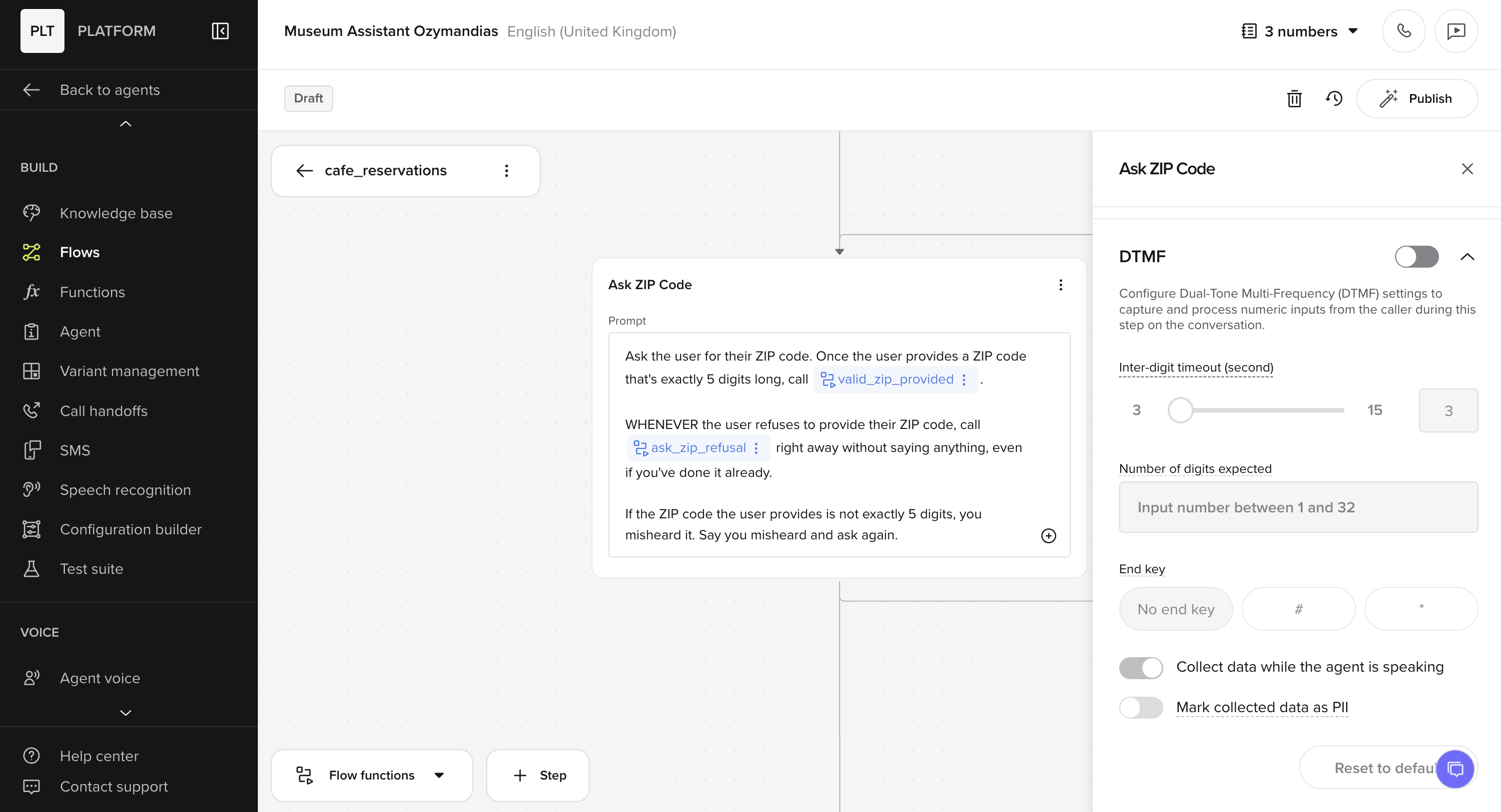

Configuring DTMF in a flow step

  1. Open your flow in the editor.
  2. Select the Advanced step where you want to collect numeric input.
  3. On the right-hand configuration panel, toggle DTMF on.
  4. Configure the following options:
SettingDescriptionDefault
Number of digits expectedHow many digits the caller must enter (1–32). Set to -1 for unlimited.—
First digit timeout (seconds)How long to wait for the first keypress before timing out.5
Inter-digit timeout (seconds)How long to wait between subsequent key presses before timing out.2
End keyOptional key (such as # or *) to signal the end of input.None
Collect data while the agent is speakingAllow input collection during speech playback.Off
Mark collected data as PIIFlag collected values as Personally Identifiable Information. When enabled, the collected DTMF digits are redacted from logs and transcripts, and handled according to your organization’s PII data-retention policies.Off
To open the DTMF menu quickly, click the app grid icon in the step’s prompt card.

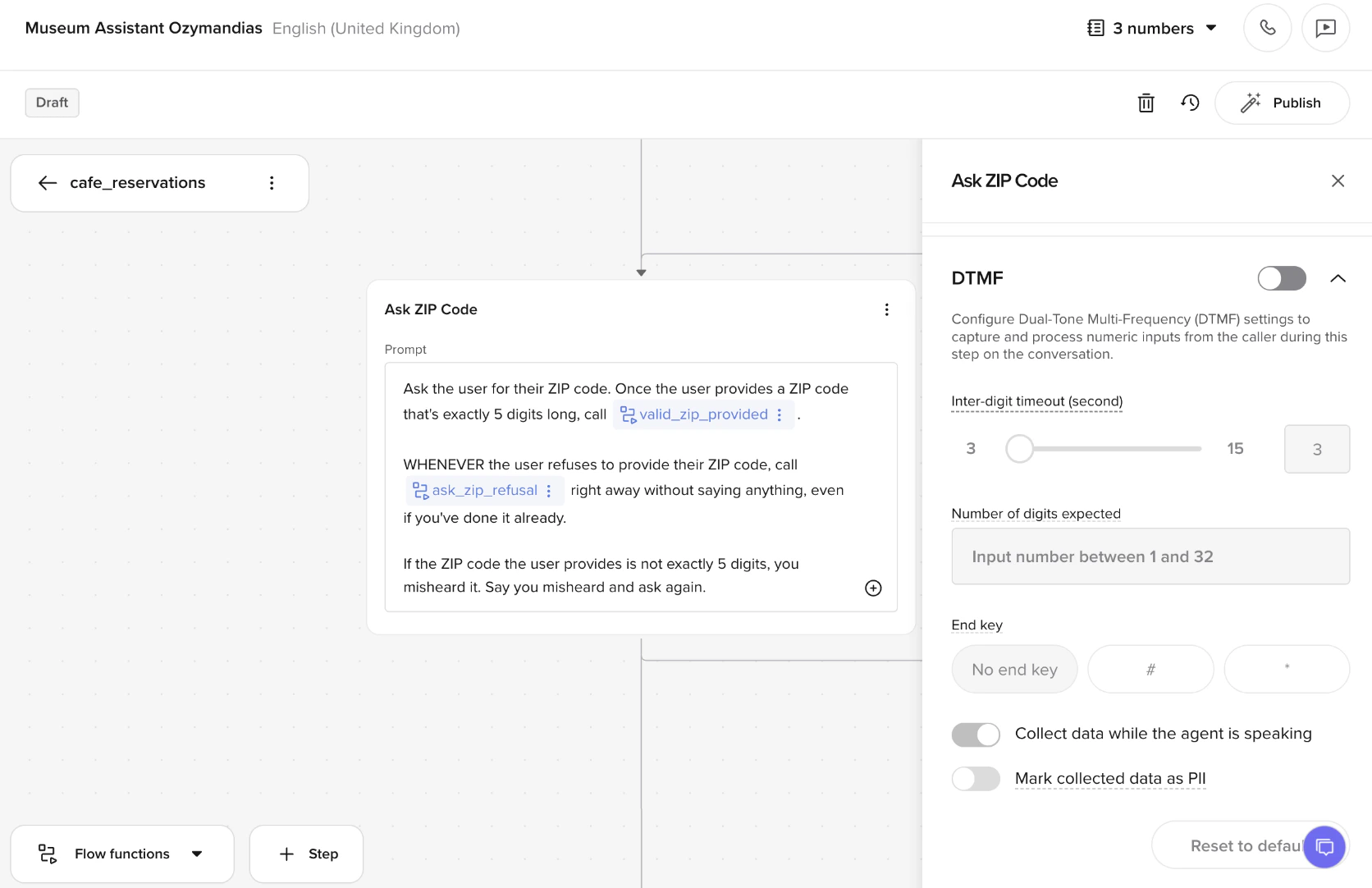

dtmf-main

​
Behavior and timing

DTMF input is processed after the start function runs. If your start function plays a greeting, that greeting plays before DTMF capture begins. To collect DTMF input before any greeting plays, override the greeting by setting it to an empty string in the start function. Even while a greeting is playing, DTMF input is still captured in the background if Collect data while the agent is speaking is enabled. For example, you can say:
“This call may be recorded. To opt out, press 1. How can I help you today?”
and still capture the caller’s keypress while they hear the welcome message.

​
ASR and DTMF interaction

When DTMF is enabled, Automatic Speech Recognition (ASR) remains active. If the caller speaks instead of pressing a key, the agent processes that speech input normally. This means:
  • You should design your flow to handle both spoken and keypad responses.
  • If the caller doesn’t press a key, there can be a noticeable delay (the inter-digit timeout) before the agent continues.
  • Consider adding fallback handling so the agent can prompt the caller again if neither speech nor DTMF input is detected.

​
Design considerations

You can use DTMF as either a fallback alongside speech or the primary input method for a step:
  • Fallback: The agent asks a question and accepts either a spoken or keypad response. Useful for yes/no confirmations or simple menu selections.
  • Primary input: The step is dedicated to DTMF collection — for example, entering a credit card number, phone number, or booking reference. In this case, consider creating a separate step with DTMF-specific configuration (digit count, end key, timeout) rather than mixing DTMF-heavy collection with speech-primary steps.
dtmf-timing-diagram

​
Recording opt-out

One common use of DTMF is giving callers the option to opt out of call recording. You listen for a specific keypress — such as “Press 1 to opt out” — and then call conv.discard_recording() to remove the current call’s recording.

​
The discard_recording() function

conv.discard_recording() is a built-in method that deletes the audio recording for the current call. It takes no arguments and can be called at any point during the call except in the end function. Once called, the conversation record shows no recording for that call, and the recording cannot be recovered.
For reliable behavior, call conv.discard_recording() after the start_function completes — for example, in a dedicated flow step. If you need to discard recordings at the very start of a call, contact your PolyAI representative for guidance.

​
Example

At the start of the call, you might say:
“This call may be recorded for quality and training purposes. To opt out, press 1.”
You can play this message either:
  • Before the greeting (by routing to a DTMF-enabled flow step before the start function), or
  • Alongside your greeting, since DTMF can still be captured while the agent is speaking.

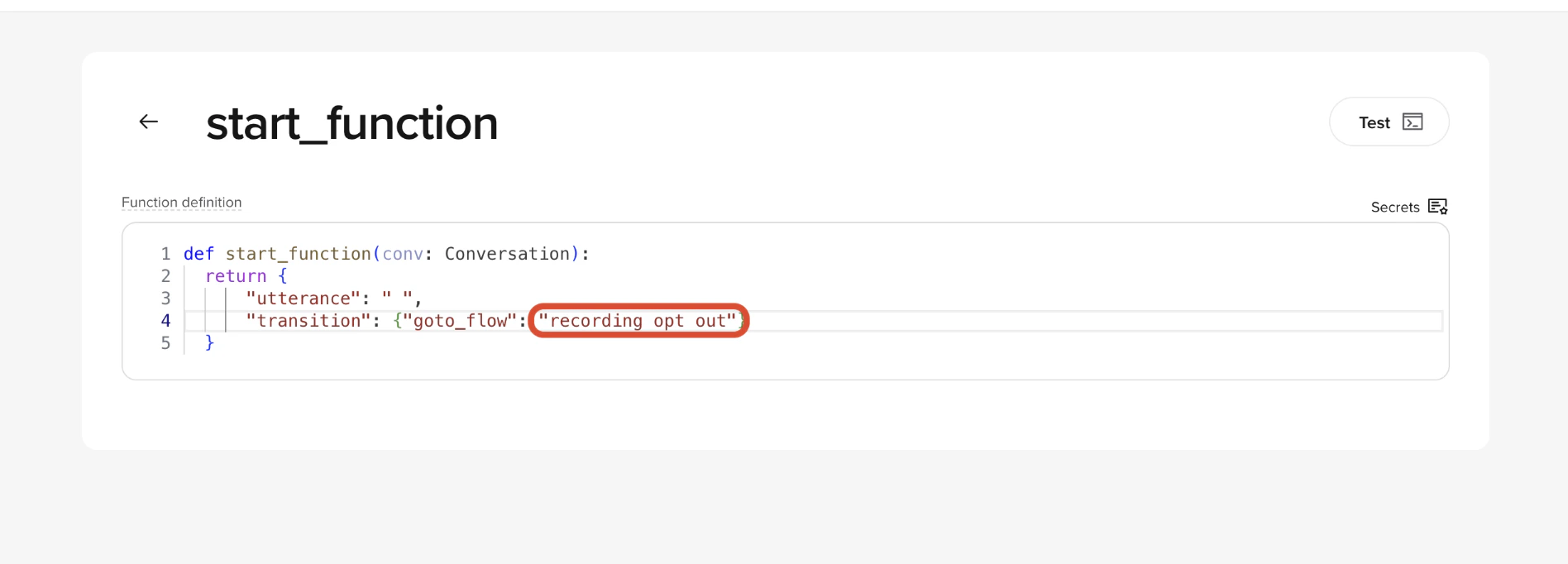

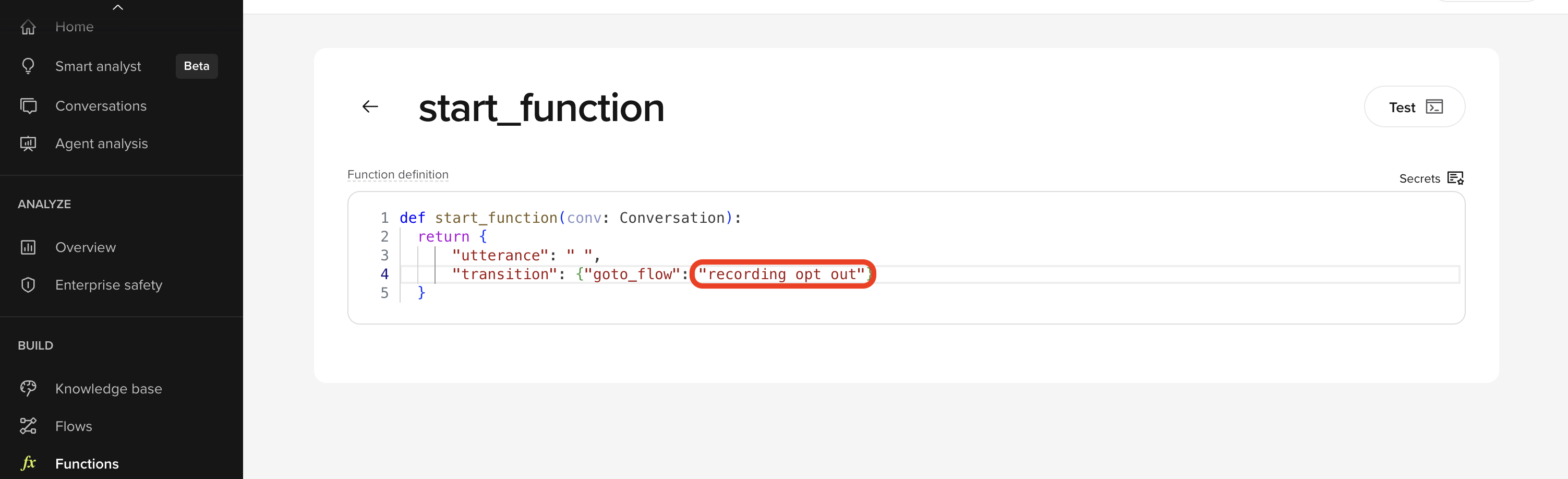

If you want to collect the opt-out keypress before any other audio plays, override the greeting in your start function with an empty string.

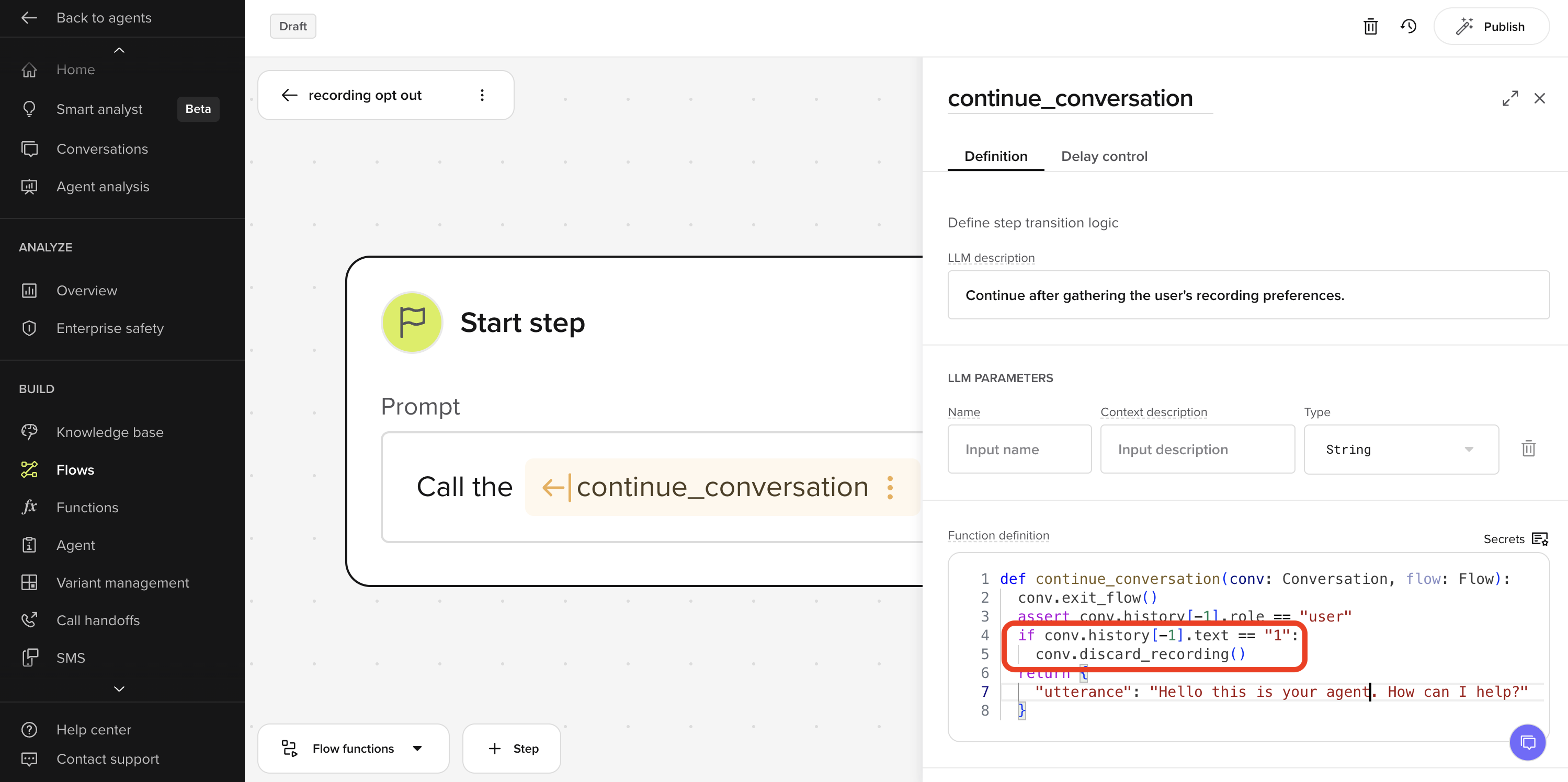

def continue_conversation(conv: Conversation, flow: Flow):
    conv.exit_flow()
    assert conv.history[-1].role == "user"
    if conv.history[-1].text == "1":
        conv.discard_recording()
    return {
        "utterance": "Hello, thanks for calling. How can I help?"
    }

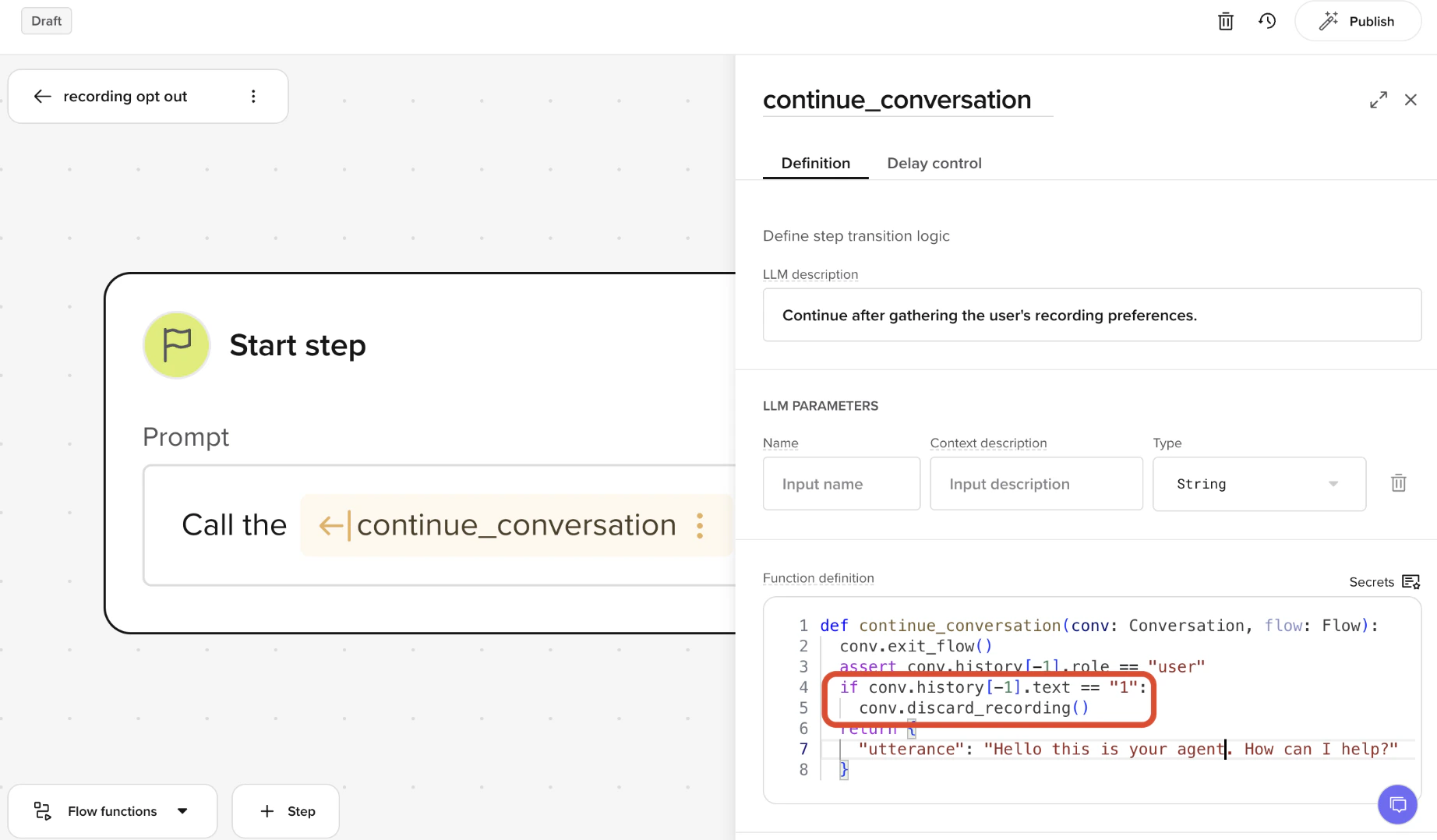

dtmf-opt-out-logic You can also design the flow so that different keys trigger different actions — for example:
  • Press 1 = opt out of recording
  • Press 2 = continue with recording enabled
